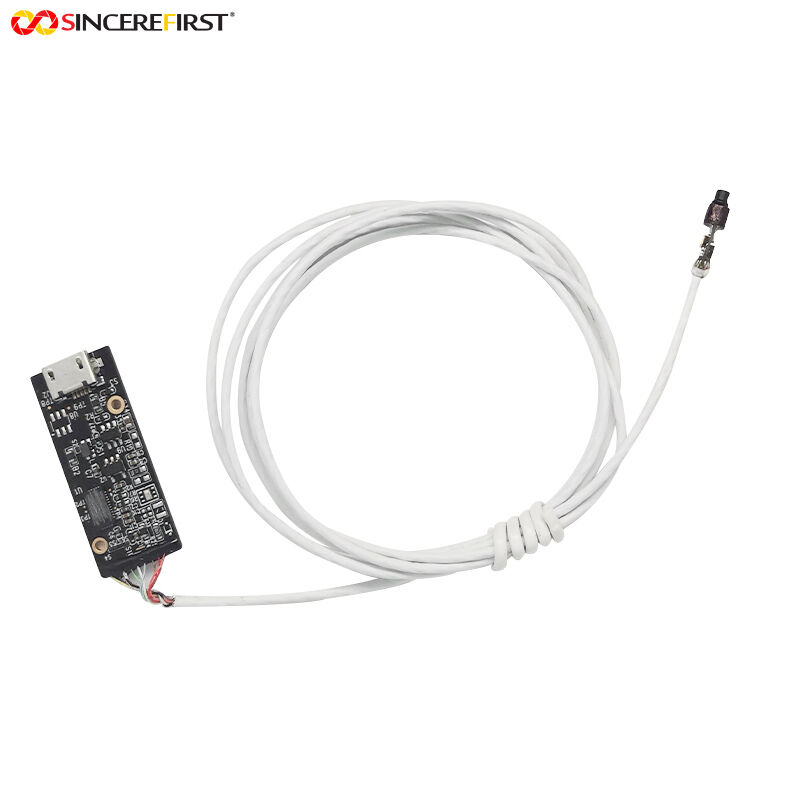

3.6mm Diameter USB2.0 Interface HD Mini OV9734 CMOS Sensor Module
Product Description:
This 3.6mm Diameter USB2.0 Interface HD Mini OV9734 CMOS Sensor Module,compatibility and easy integration, solving the pain points of difficult access, complex deployment and unstable imaging in confined space detection scenarios. Its 3.6mm ultra-miniature probe is designed to tackle the most challenging narrow spaces—micro-holes, thin pipes and equipment gaps that conventional endoscopes cannot penetrate—while maintaining a compact structure that withstands frequent on-site use. Built around the mature OV9734 CMOS sensor, it delivers stable 720P@30fps HD imaging, with a 10–100mm close-range optimized optical system that precisely matches the actual working distance of endoscopic detection, ensuring clear, usable images without repeated focus adjustment. The 95°×85°×43.5° wide field of view expands single-frame coverage, reducing probe movement and improving on-site detection efficiency, while the 4 high-brightness optional LED lights provide targeted supplementary light for dark environments, eliminating imaging blind spots in low-illumination narrow spaces. Adopting the industry-standard USB2.0 UVC driver-free protocol, it supports plug-and-play with almost all mainstream terminal devices and operating systems, eliminating the need for professional technical debugging and greatly reducing deployment time for on-site maintenance personnel. The 5PIN USB and JST SM04B-GHS-TB dual interfaces enhance integration flexibility, allowing seamless connection with detection equipment, portable monitors and embedded systems. With its focus on practical application scenarios, this module balances miniaturization, stability and ease of use, becoming a reliable, cost-effective imaging tool for on-site maintenance, pipeline inspection, precision equipment troubleshooting and scientific experiments.
Features:

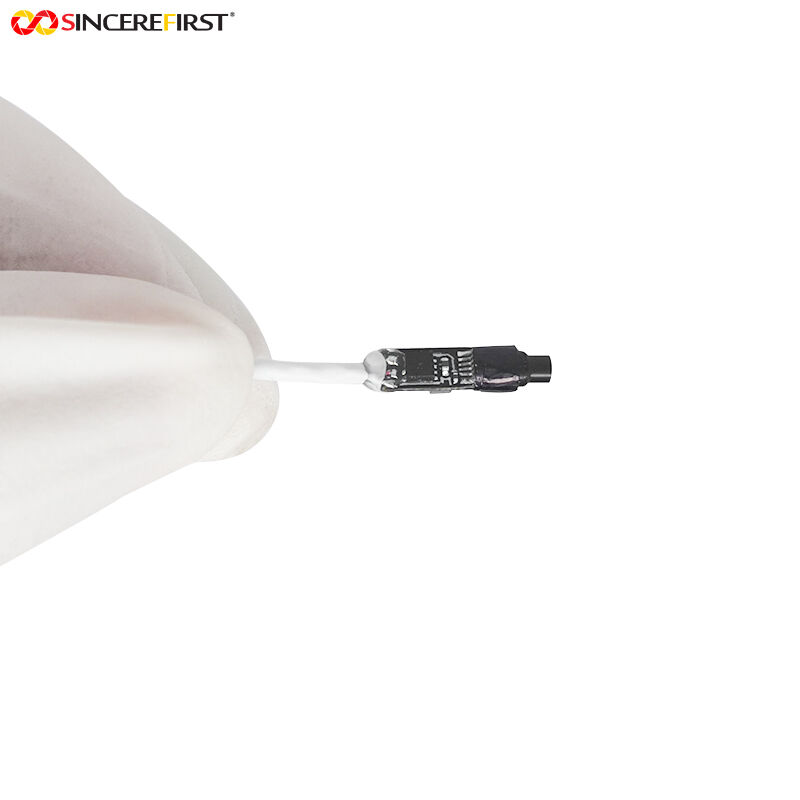

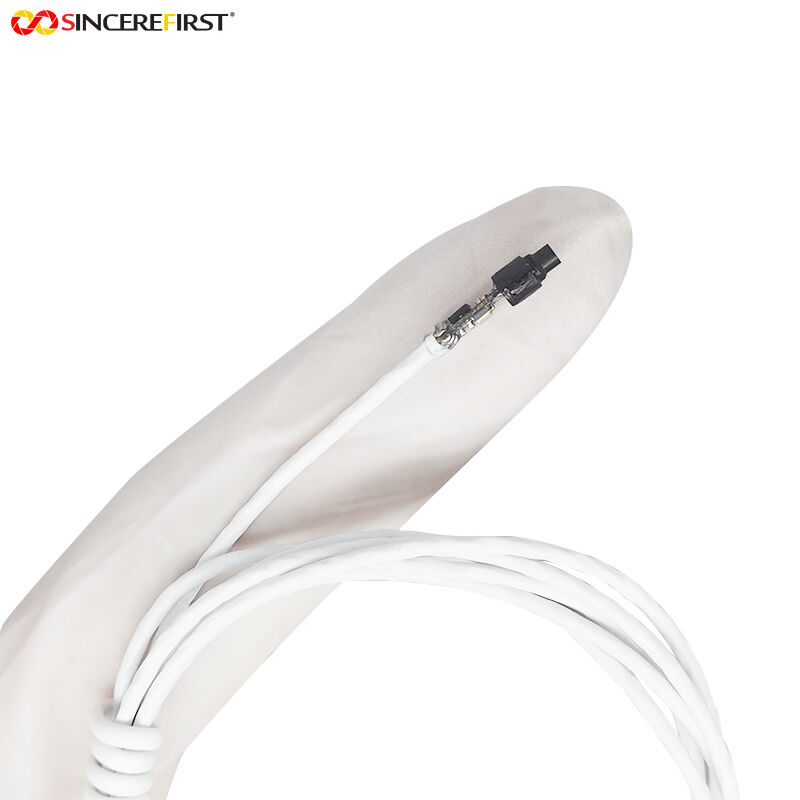

1.Ultra-Mini & Practical Structure:3.6mm probe diameter enables access to ultra-narrow spaces such as micro-holes and thin pipes; compact design adapts to frequent on-site use, withstanding minor collisions and wear during deployment.
2.Plug-and-Play for On-Site Efficiency:UVC driver-free design, compatible with Windows, Linux, Android and other systems, no professional debugging required—connect and start detecting immediately, saving on-site deployment time.
3.Scene-Optimized Close-Range Imaging:10–100mm focusing range precisely matches endoscopic working distances, 95°×85°×43.5° wide FOV reduces probe movement, ensuring efficient and clear detection without repeated adjustment.

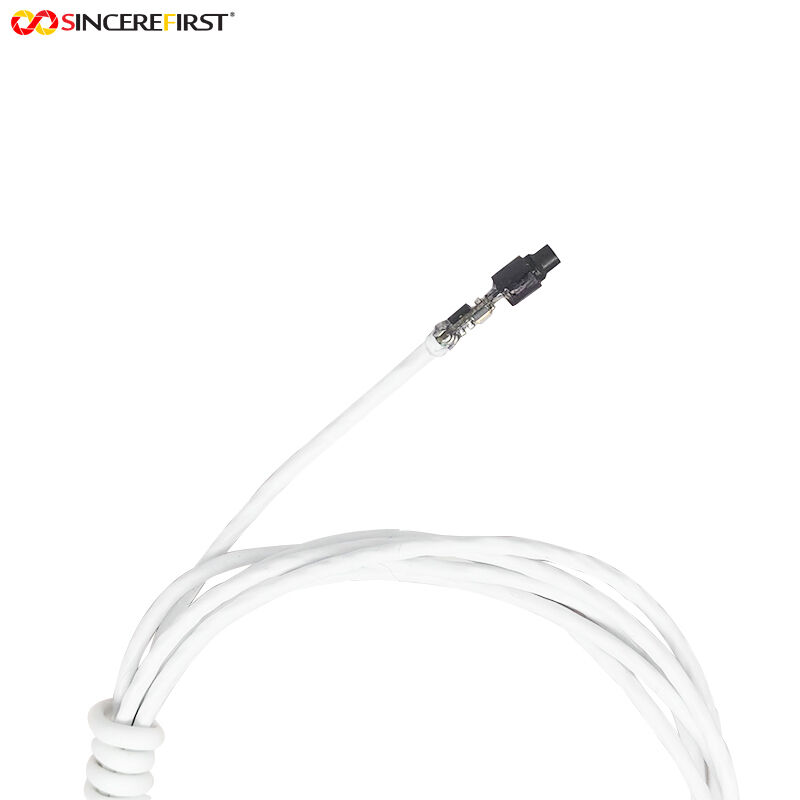

4.Flexible Supplementary Light & Integration: 4 high-brightness optional LED lights eliminate low-illumination blind spots; dual interfaces (5PIN USB + JST SM04B-GHS-TB) support flexible integration with various detection equipment, adapting to diverse on-site needs.
Technical Parameters:
| Product Name |
CMOS Medical Endoscope Camera Module
|
|
Sensor
|
OV9734 CMOS Sensor
|
| Output Format |
YUV&MJPEG |
|
FOV
|
95°
|
|
F.NO
|
4.0 |
|
Pixel
|
720P
|
|
LED
|
4pcs
|
|
Interface
|
Micro, USB2.0 |
| Focus Length |
1.08mm |
| Focus Range |
10-100mm |
| Distortion |
<-10% |
|
Warranty
|
10 Years
|
|
Certification
|
CE, FCC, REACH, ISO, RoHS |
Applications:
1.On-Site Ultra-Thin Pipeline Inspection:Use it to inspect micro-channels, thin hydraulic pipelines and small-diameter pipes (above 3.6mm) for internal scaling, corrosion and blockages; its ultra-mini probe and close-range imaging ensure clear, convenient detection.
2.Precision Electronic On-Site Maintenance:Use it to troubleshoot hidden faults in mobile phones, laptops and precision instruments; its miniaturized design fits narrow internal spaces and stable imaging helps quickly locate faults.
3.Automobile After-Sales & Maintenance:Use it for non-disassembly inspection of automobile engine gaps, air conditioning pipelines and other parts; its 3.6mm probe and driver-free design improve maintenance efficiency.
4.Laboratory & Medical Auxiliary Detection:Use it for micro-observation of small cavities, experimental devices and biological samples; its ultra-mini structure and close-range imaging meet high-precision observation needs.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
